Real-Time Alarm Systems

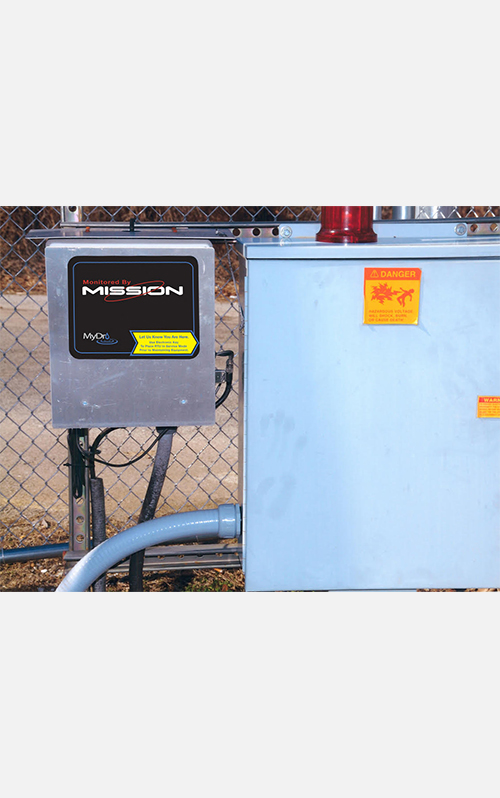

Over 2,500 utilities rely on Mission remote terminal units (RTUs). Most deploy an RTU at each sewer lift station, relying solely on the Mission system for monitoring. Others link the Mission data with their plant SCADA using an OPC link.

Unsure which RTU will meet your needs? Use the chart below for a direct comparison of the applications where each type of system is most appropriate. Also compare features and functionality to get the monitoring that is right for your unique needs.

The base model is our M110 system, which can be upgraded at any time. More advanced systems have the features of basic systems, plus the additional functionality listed in the chart. Every system has the following features:

  • Alarms: Real-time notifications by phone, email, pager, fax, and web portal—highly configurable with compound conditions and optional delays
  • Alerts: Emailed notifications to review previous hour or day anomalies for data such as excessive pump starts, runtimes, or additional information available with each specific device (listed in chart)
  • Reports: Downloadable or scheduled email reports for prior periods covering detailed information gathered by the RTU and information related to alerts
  • System Alerts: Notifications related to the system as a whole or a group of RTUs

Comparison Chart

  • TYPICAL APPLICATIONS
    M110MyDro 150M800MyDro 850Manhole Monitor
    WastewaterUse for real-time alarm notifications and hourly summary of pump runs and starts for sewer lift stations. Monitoring of forced main (master) pump stations. Monitoring low pressure sewer grinder pump. Monitoring industrial water quality. Discrete monitoring with alarms. Flow monitoring with pulse.The MyDro 150 has all the functionality of the M110, plus onboard interactive display and enhanced electronics. Use for applications such as real-time alarm notifications and hourly summary of pump runs and starts for sewer lift stations.Use for master lift stations where real-time pump state information or trending analog instrumentation is of value. Additional reports like Volumetric Flow Calculation can be employed for more accurate flow without requiring a flow meter. Also use for applications requiring automated remote control.The MyDro 850 has all the functionality of the M800, plus onboard interactive display and enhanced electronics. Use for master lift stations where real-time pump state information or trending of analog instrumentation is of value. Additional reports like Volumetric Flow Calculation can be employed for more accurate flow without requiring a flow meter. Also use for applications requiring automated remote control.Use for sewer manholes where alarm notifications of surcharge and high levels are of value to avoid Combined Sewer Overflow (CSO) and Sanitary Sewer Overflow (SSO). Also use for communication vaults and other locations where an entry alarm is of value.
    WaterUse for reservoir monitoring where hourly levels are adequate. Also use for manual remote control of valves, booster pumps, or other assets.The MyDro 150 series has all the functionality of the M110, plus onboard interactive display and enhanced electronics. Use for reservoir monitoring where hourly levels are adequate. Also use for manual remote control of valves, booster pumps, or other assets.Use for Tank and Well automated control. Also use for chlorine residual and pressure monitoring.The MyDro 850 series has all the functionality of the M800, plus onboard interactive display and enhanced electronics. Use for Tank and Well automated control. Also use for chlorine residual and pressure monitoring.N/A
    OtherUse for a weather (rain) reporting stationUse for a weather (rain) reporting stationFlow studiesFlow studiesUse for temporary deployments
  • RTU DATA Reporting
    M110MyDro 150M800MyDro 850Manhole Monitor
    Digital (Alarm inputs)Real-timeReal-timeReal-timeReal-timeReal-time
    Digital (Pump State and Runtimes)Summarized hourlySummarized hourlyReported in real-time with various summary reportsReported in real-time with various summary reportsN/A
    Simultaneous Pump Run, on 3rd DI, on 3rd DI, on 8th DI, on 8th DIN/A
    Analog ReportingReal-time, when threshold is breached, hourly for current, high and low valueReal-time, when threshold is breached, hourly for current, high and low valueEvery 2 minutes or real-time if greater than 5% changeEvery 2 minutes or real-time if greater than 5% changeN/A
    Pulse15 minutes15 minutes2 minutes2 minutesN/A
    Simultaneous Pump RunHourlyHourlyHourlyHourlyN/A
  • INPUTS
    M110MyDro 150M800MyDro 850Manhole Monitor
    Digital8, expandable to 16, up to 3 can be configured as runtimes8, expandable to 16, up to 3 can be configured as runtimes8, expandable to 16, up to 8 can be configured as runtimes8, expandable to 16, up to 8 can be configured as runtimesN/A
    Pump RuntimeUp to 3Up to 3Up to 8Up to 8N/A
    Analog2, expandable to 62, expandable to 62, expandable to 62, expandable to 6N/A
    Built-inAC and battery voltage, signal strength, board tempAC and battery voltage, signal strength, board tempAC and battery voltage, signal strength, board tempAC and battery voltage, signal strength, board tempBattery voltage, signal strength, board temp
    Pulse2 with expansion board2 with expansion board2 with expansion board2 with expansion boardN/A
    Additional NotesRequires option board, one option board per RTUBy way of expansion module, multiple modules can be included on one RTURequires option board, one option board per RTUBy way of expansion module, multiple modules can be included on one RTUN/A
  • REPORTS
    M110MyDro 150M800MyDro 850Manhole Monitor
    Volumetric Flow CalculationsN/A
    Alarm, Alert, and Dispatch Logs with easy access to call recordings
    Pump Information: Runtime, Starts, Alarms, Daily, Monthly, Variance (displayed in tables and graphs)N/A
    Digital DataDigital Alarm InputsDigital Alarm Inputs
    Analog Data (displayed in tables and graphs), with optional integration (totalizing) reports, with optional integration (totalizing) reportsN/A
    Flow DataN/A
    Rainfall Data: from National Weather Service or local Tipping Bucket (tabular data, graphs, and integrated with other reports like pump runtime)
    Specialty Reports: SSO/CSO (Sanitary Sewer Overflow/Combined Sewer Overflow), SDWA (Safe Drinking Water Act), Chlorine etc., Use DI 7, 8 for CSO/SSO reporting, Use DI 7, 8 for CSO/SSO reportingCSO, SSO
    Capacity EstimatorN/A
    Weekly Management Reports for overall System Performance
    Disabled Inputs Reports
    Site Access Reports: electronic keys • Web Site Access: By User and IP AddressTest Function
    Unit Health: Check In History, Cellular Connection History, Voltage Reports, Solar Data
  • REMOTE CONTROL
    M110MyDro 150M800MyDro 850Manhole Monitor
    Manual remote control (request current data values, command relays, set analog output values) (request current data values, command relays, set analog output values) (request current data values, command relays, set analog output values) (request current data values, command relays, set analog output values)N/A
    Tank and Well Remote Control System (analog begets digital), with optional Tank and Well package, with optional Tank and Well packageN/A
    Digital Intertie (digital begets digital), source can be any 800 RTU or Manhole Monitor, source can be any 800 RTU or Manhole Monitor, as source
    Analog Intertie (analog reproduced at another RTU)N/A
    Pulse Intertie (pulse begets digital), with optional Pulse Remote Control Package, with optional Pulse Remote Control PackageN/A
