Transducers and Instrumentation

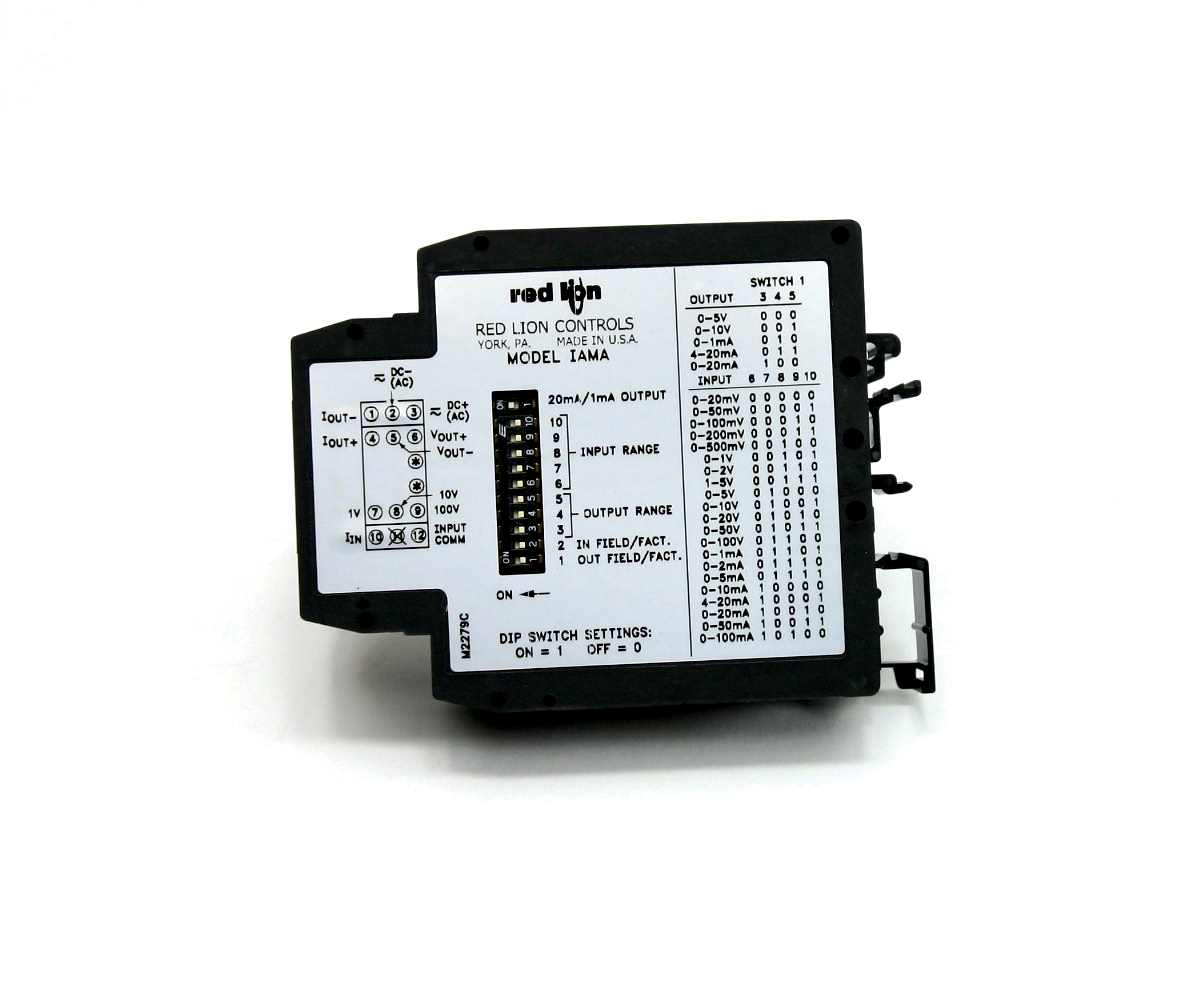

Loop Isolator—Analog

Universal signal conditioning module features 3-way isolation of analog signals and over 100 input and output analog conversion combinations. Power requirements: 11–36VDC, 3W max. or 24VAC, 50/60Hz, 4.8VA max, UL-recognized. (PN IT484)

product image

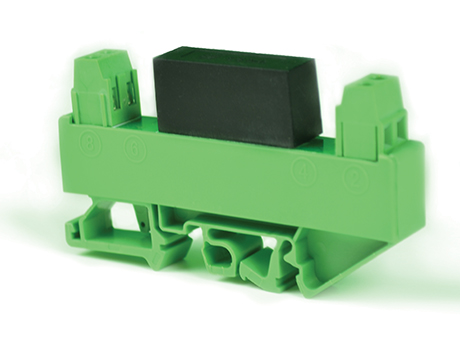

Loop Isolator

Passive loop isolator, loop powered, Non-adjustable range/span, 0–20mA. Standard DIN rail mounting, slim 1/4” width. (PN IT476)

product image

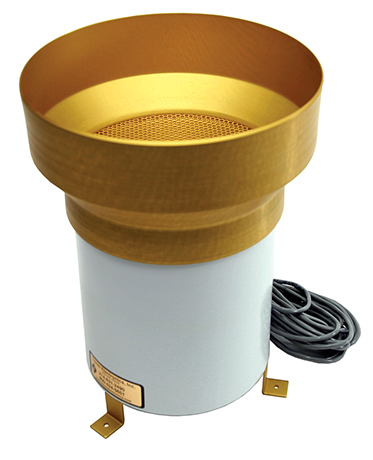

Rain Tipping Bucket

Corrosion resistant rainfall measuring device records rainfall measurements in 0.01” of rainfall. NOAA compliant; requires Option Board—Pulse Input  (PN  OP463). Rain tipping buckets must be level for accuracy. Refer to Rainfall Kit—AC (PN KT275) for rainfall kit containing a mounting stand. (PN IT251)

product image

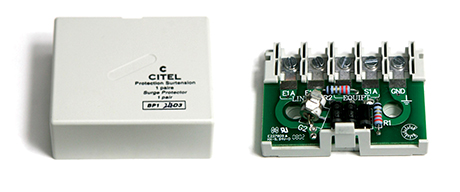

Surge Suppressor—Analog

Surge suppressor for use with 4–20 mA loop circuits, 24V nominal line voltage. Replacement for surge suppressor included with non-submersible pressure transducer. (PN IT482)

product image

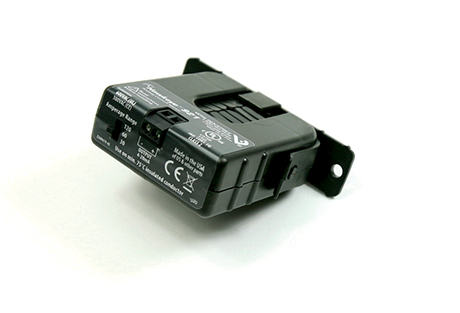

Transducer—Current

Converts AC current draw to a 4–20mA signal. Switchable current ranges (0–30, 0–60, 0–120amps); 4–20 mA out-
put, 30mA (max. draw) at 12–30 VDC sensor power, 5–140° F temp range, UL-listed. (PN IT484)

product image

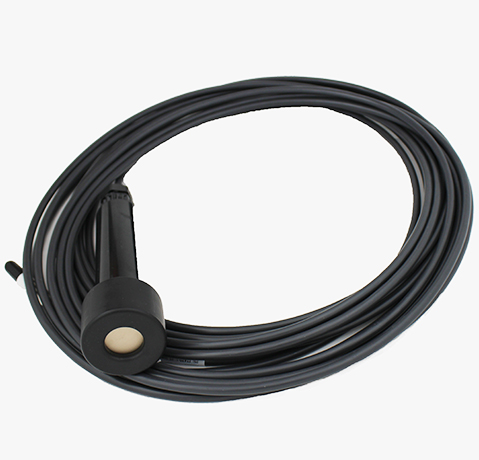

Transducer—Level, 0–15’ Range, 40’ Cable

Submersible Transducer, PVC/ABS body, 2.0” OD, 0.9” unobstructed ceramic diaphragm, electrically-isolated, loop-powered. 4–20mA DC output over 6.5 PSI/0–15′ span. Includes sealed breather system. (PN IT470-1)

product image

Transducer—Level, 0–23.1’ Range, 40’ Cable

Submersible Transducer, PVC/ABS body, 2.0” OD, 0.9” unobstructed ceramic diaphragm, electrically-isolated, loop-powered. 4–20mA DC output over 10psi/0–23.1′ span. Includes sealed breather system. (PN IT470-2)

product image

Transducer—Level, 0–23.1’ Range, 65’ Cable

Submersible Transducer, PVC/ABS body, 2.0” OD, 0.9” unobstructed ceramic diaphragm, electrically-isolated, loop-powered. 4–20mA DC output over 10psi/0–23.1′ span. Includes sealed breather system. (PN IT470-3)

product image

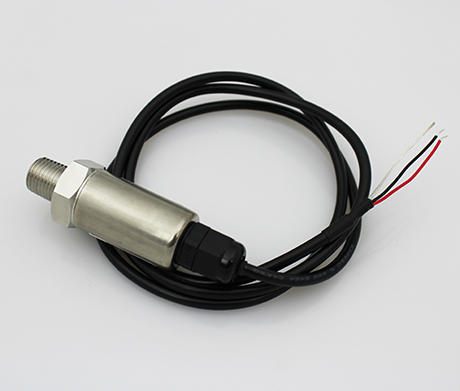

Transducer—Pressure, 0–15psi

316 stainless steel, non-submersible pressure transducer for use with ground tanks or water line pressure. 4–20mA, 0–34.65’ range, 18” cable. 0.20% accuracy, calibrated to produce industry-standard electrical outputs. Includes surge suppressor (PN PW482). (PN IT477S)

product image

Transducer—Pressure, 0–30psi

316 stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 4–20mA, 0–69.3’ range, 18” cable. (PN IT465S)

product image

Transducer—Pressure, 0–75psi

316 stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 4–20mA, 0–173.25’ range, 18” cable. (PN IT472S)

product image

Transducer—Pressure, 0–75psi

316 Stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 0–5V, 0–173.25’ range, 18” cable. Recommended for solar applications. Includes surge suppressor (PN PW482). (PN IT474S)

product image

Transducer—Pressure, 0–150psi

316 Stainless steel, non-submersible pressure transducer for use with elevated tanks or water line pressure. 4–20 mA, 0–346.5’ range, 18” cable. 0.20% accuracy, calibrated to produce industry standard electrical outputs. Includes surge suppressor (PN PW482). (PN IT473S)

product image
