Power Accessories and Components

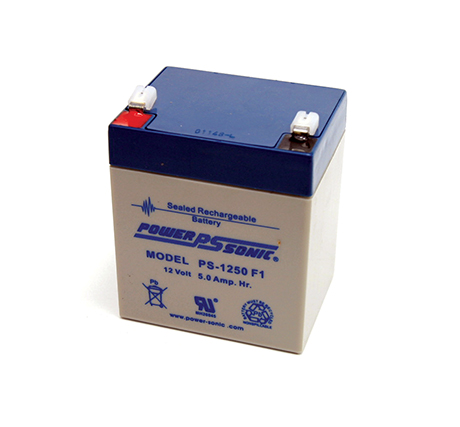

Battery—5Ah

12VDC, 5Ah, sealed, lead-acid battery. Includes quick-disconnect tabs and is UL-recognized. Included with M110 and M800 RTUs. (PN PW441)

product image

Battery—7Ah

12 VDC, 7 Ah, sealed, lead-acid battery. Includes quick-disconnect tabs and is UL-recognized. Included with solar-powered Rainfall Kits (PN KT276 and KT277). Extends standard RTU battery backup to 45 hours. (PN PW442)

product image

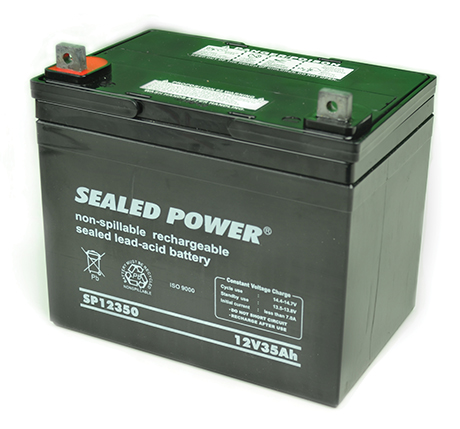

Battery—35Ah

12V, 35Ah battery for solar applications or to extend battery backup duration. Fits inside NEMA 4X large enclosure. Dimensions: 5″ x 7.5″ x 7″. Weight: 25 lbs. (PN PW862)

product image

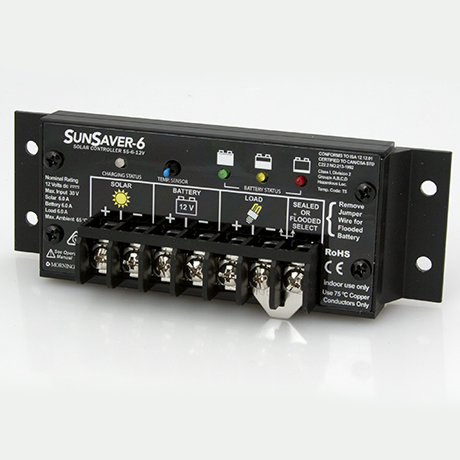

SunSaver-6

12V, 4amp, charge regulator for solar RTUs. 14.5V nominal boost, 4amp. maximum solar panel current, RoHS compliant; included in Solar Kit (20W). (PN PW865)

product image

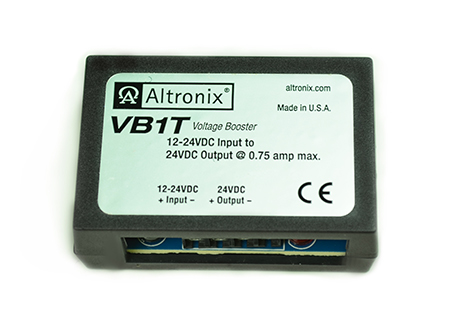

Power Booster

Power booster has 24VDC regulated output, 12–24VDC input, with a 0.75A max output. 100mA practical load limit when powered by Mission auxiliary output. (PN PW7002)

product image

Power Supply—Plug-In, 24V

Black plug-in power supply with 100–240V input. Includes LED power indicator. 24VDC, 1amp. UL-listed and RoHS-compliant. (PN PW426)

product image

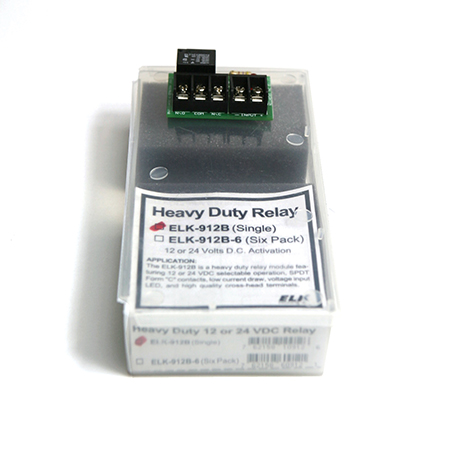

Relay

Single-pole, double-throw relay powered by 12VDC. Coil is protected by a shunt diode to prevent spikes when relay is deenergized. Use when controlling larger A/C relays—up to 120V. Includes MOV to minimize EMI at load. 12/24VDC, 35mA coil. Contacts rated 120VAC, 10amp. (PN PW479)

product image

Relay—Solid State

Single-pole, single-throw, N/O only, 5-24VDC control, 120VAC 20 amp load. Relay includes zero-cross feature to prevent spike generation when switching load. Minimum 1A load to ensure proper switching of load current. (PN PW480)

product image

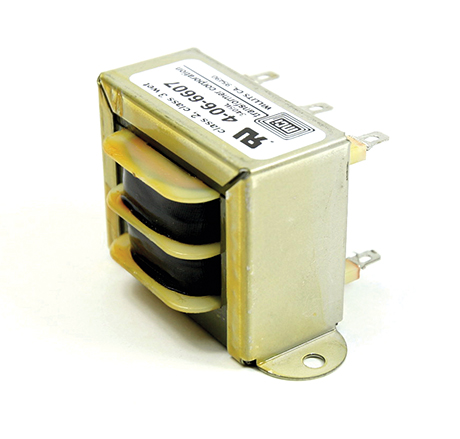

Transformer

120VAC step-down to 12.6VAC 20VA. Use for hard-wired transformer in UL 508 installations. UL-recognized. (PN PW453)

product image

Transformer—Flying Lead

120VAC step-down to 12.6VAC, 1amp. UL-recognized. (PN PW429)

product image

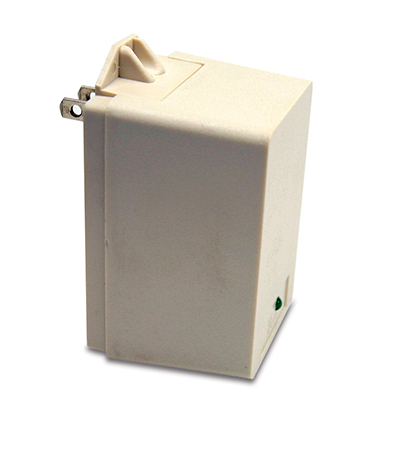

Transformer—Plug-In

120VAC step-down to 12.6VAC MOV protected. UL-listed. (PN PW430)

product image
