MISSION offers a turnkey monitoring and control system to manage remote sites.  While some people think of the Model 100 as an advanced autodialer, it is really an automated management system, both for pumping stations, and the people who maintain them.

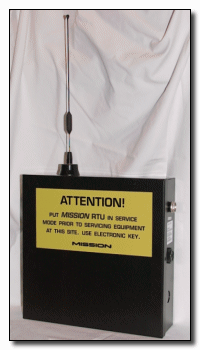

The Model 100 RTU has 8 digital, 2 analog and 1 electronic key reader inputs, and 3 outputs. It typically installs in two hours or less. The wireless communication is through the ultra-reliable cellular digital control channel to Mission’s automated Control Center. The Model 100 works anywhere in the U.S. and dependably performs in remote or hilly areas.

The information on your secure website is displayed on an easy to understand graphic depiction of your water system. Log on and get a real time snapshot of all RTU’s with alarms or AC failures detailed in a single glance. Mission’s system can also blend with existing radio SCADA systems and send data right to your existing HMI computer via OPC. Mission’s automated Control Center simultaneously generates alarm and status notifications to your personnel via all pagers, e-mail, faxes, voice phone calls. All alarms are easily confirmed by time and recipient.  Electronic RTU service keys document and log service personnel site inspections and maintenance.  Mission can supply you with virtually all the information needed for CMOM/state EPA reporting for your pump stations; from rainfall/wet weather event documentation, I & I estimates, pump station performance and maintenance, to alarms and documented responses.

For the first time, this industry has available a truly low cost, wireless monitoring and control RTU that will work virtually everywhere you want, and will outperform autodialers and most long range radios. It’s extremely easy to use, and it’s small enough to fit inside an existing PLC’s NEMA enclosure.  There are no cellular contracts
or licenses to obtain.  In addition to more standard SCADA functions such as reporting general alarms, pump run times, pump starts, meter reading and well or tank level monitoring, etc., Mission’s system has a number of unique abilities. Mission actually analyses pump performance on a daily basis using customized, long term statistical formulas. When Mission detects abnormal pump performance, it automatically notifies you of the trouble. Mission also has unique alarm notification scheduling, alarm receipt confirmation abilities and extensive event and service personnel tracking.  All this at half or less than the price of autodialers and about half the monthly phone line costs! Replacing costly phone lines can save $300 per site per year.
